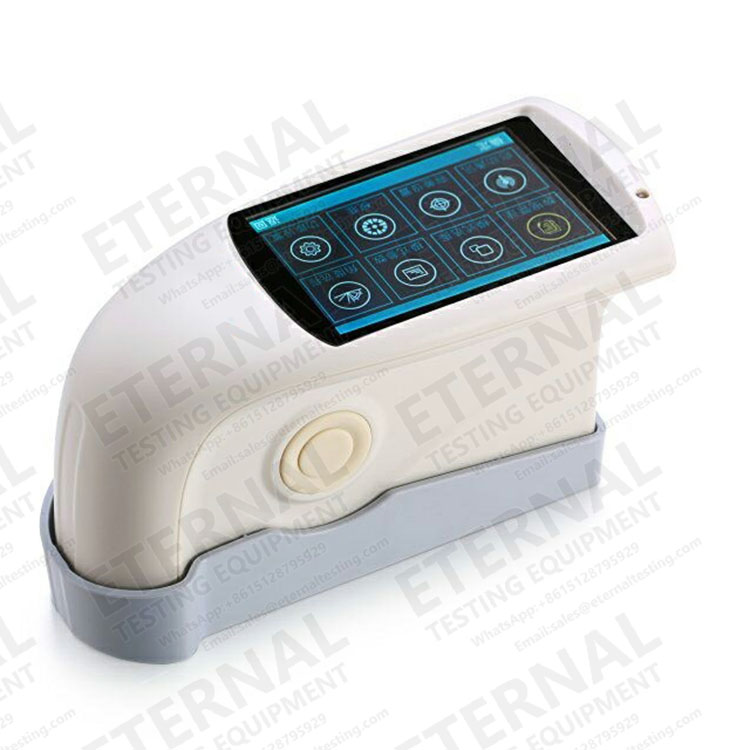

PAINT GLOSS METER NHG60

PAINT GLOSS METER   NHG60

Nhg60 is a 60 ° angle high-precision glossmeter independently developed by sanenshi. It is a glossmeter with independent intellectual property

rights. This instrument is designed and manufactured in full reference to the international standard ISO 2813 and the Chinese national standard GB / T 9754. It is a full touch and large screen operating glossmeter. In addition, in order to make it more convenient for users to use and store analysis data, the company configures professional upper computer software for nhg60 to professionally and effectively measure products and manage data. Nhg60 glossmeter has many characteristics, such as easy to use, stable performance, accurate measurement and high-end modeling. In addition, it is equipped with built-in lithium battery for power supply, which is more convenient to use.

Product features：

1. This instrument fully considers the user's experience. It is operated with a full touch screen and is easy to operate.

2. Large screen (3.5 inches) high resolution (320 * 480) full view display, clear interface image.

3. Beautiful appearance and structural design conforming to human body mechanics.

4. High hardware configuration, incorporating a number of innovative technologies.

5. Conform to Standards ASTM D523, ASTM d2457, GB / T 1381, GB / T 7706 and GB / T 8807.

6.60 ° measurement angle, detection spot 9 * 15mm.

7. Multiple function settings can meet different needs of customers.

8. PC quality management software has powerful function expansion.

9. Large capacity storage space, which can store 1000 basic records, 5000 statistical records and 5000 continuous records.

10. Manually input the gloss data to facilitate customer operation.

Precautions for use：

This instrument is a precision optical instrument. Please keep and use the instrument properly. Avoid using and storing the instrument in humid, strong electromagnetic interference, strong light and dusty environment. It is recommended to store the instrument in a standard laboratory environment (temperature 20 ℃, 1 standard atmospheric pressure, humidity 50 ~ 70% RH).

The standard plate is a precision optical element, which should be properly kept and used to avoid hitting the working surface with sharp objects, soiling the working surface with dirt, and exposing the standard plate to strong light. Regularly clean the working surface of the standard plate with a soft wiping cloth and alcohol. It is best to wipe it from only one direction, not back and forth, and ensure that there are no small particles and sundries in the specific gravity. These particles will damage the surface of the standard plate during cleaning. Do not use acetone solution! The dust on the working surface shall be removed in time during calibration, and only the intact and clean standard plate can be calibrated accurately.

Nhg60 supplies power to the built-in lithium battery. If you do not use the instrument for a long time, please charge the instrument every

2 weeks to protect the performance of the lithium battery and extend the life of the lithium battery.

The cleaning of optical objects inside the instrument can only be completed by our after-sales department. It is recommended to clean

them once a year. Do not insert the cleaning tool into the instrument for cleaning, which will cause irreversible damage to the instrument.

technical specifications：

Nhg60 60 60 ° precision glossmeter

l Product model: nhg60

l Measuring angle: 60 °

l In accordance with ISO 2813, ASTM D 523 and GB / T 9754

l characteristic

l It can be used for gloss measurement and gloss data transmission in paint, ink, paint, electroplating, plastic electronics, hardware and other industries.

l Basic measurement, statistical measurement, continuous measurement, quality control measurement (only upper computer) and other measurement modes meet a variety of use conditions; The gloss value can be entered manually

l Measuring spot (mm) 9x15

l Measuring range: 0 ~ 1000gu

l Division value: 0.1gu

l Measurement repetition accuracy: 0 ~ 100gu: 0.2gu; 100~1000GU:0.2%GU

l The measurement accuracy meets the requirements of JJG 696 working glossmeter

l Chromaticity response CIE 1931 (2 °) photometric response under CIE C light source

l Measurement time: 1.5s

l Dimensions: l x W x H = 160x75x90mm

l Weight: About 350g

l Language: Simplified Chinese and English

l Battery capacity 3200mah lithium battery, more than 5000 times in 8 hours

l Display screen TFT true color 3.5inch display screen, capacitive touch screen

l Interface: USB / RS-232

l 1000 basic modes for storing data, 5000 statistical modes and 5000 continuous modes

l Upper computer software gqc6 quality management software, quality inspection report printing, more function expansion

l Operating temperature range: 0 ~ 40 ℃ (32 ~ 104 ° f)

l Storage temperature range: - 20 ~ 50 ℃ (- 4 ~ 122 ° f)

l Humidity less than 85%, no condensation

l Standard accessories: horizontal charger, USB data cable, instructions, gqC quality management software (downloaded from the official website or provided after sales), calibration standard board

l Optional accessories: micro printer
