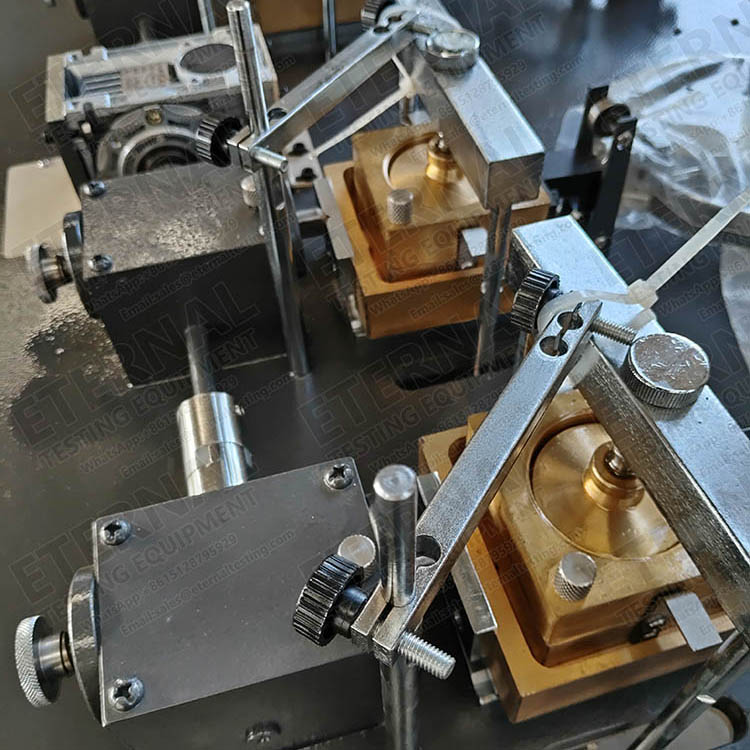

Direct - Residual Shear Test Machine SemiAutomatic Electric Two or Three
Speed Options
Standards:
ASTM D3080; BS 1377:7; AASHTO T236, TS 1900-2, CEN-ISO-TS 17892-10
Description:
The test covers the determination of consolidated drained shear strength of a soil material by direct shear.Direct - Residual Shear Test Machine is motorized and floor mounted. Soil Testing Equipment
Generally, four specimens are applied with shear force under different vertical pressures to obtain the shear stress at the time of failure, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law.Soil Testing Equipment
Features:
0.02, 0.8, 2.4mm/min, electric two or three speed optional, manual (the displacement of the push rod per rotation of the hand wheel is 0.2mm)
Direct - Residual Shear Test Machine is motorized and floor mounted.
Soil Testing Equipment
Specification:
| Vertical load | 50kPa, 100KPA, 200KPa, 300kPa, 400kPa |
| Horizontal load | 1.2kn |
| Leverage ratio | 1:20 |
| Specimen area | 30cm |
| Power supply | AC220V ± 10%50hz |
| Shear rate | 0.02, 0.8, 2.4mm/min, electric three speed, manual (the displacement of the push rod per rotation of the hand wheel is 0.2mm) |
| Overall dimension | 830 × 530 × 1250mm |
| Weight | 50kg |
