Field Portable Kits-A

Description:

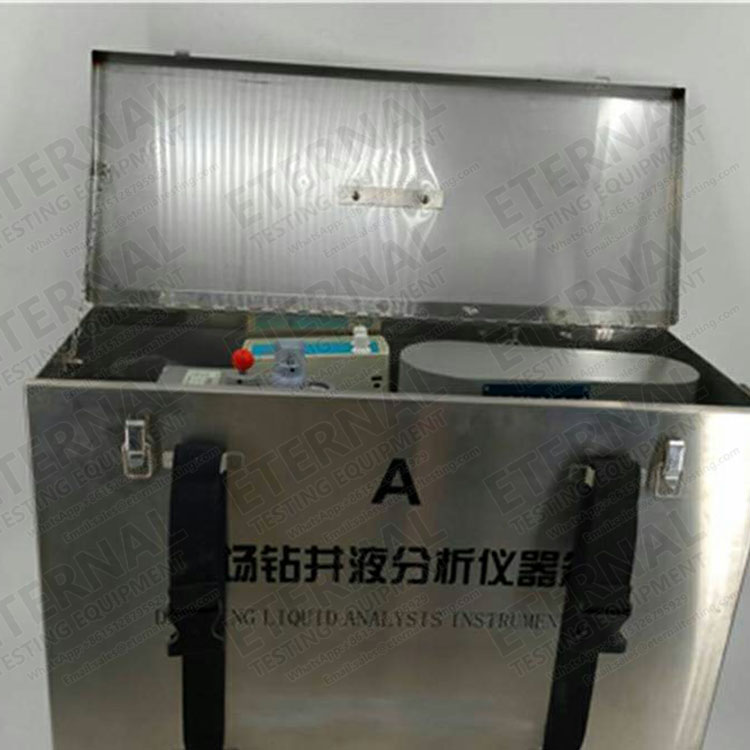

Type A Field Portable Kits is a set of multi-function integrated drilling fluid analysis apparatus. The corollary box is a stainless steel box

consists of ZNN-D6 6-speed viscometer，GJ-3S High-speed mixer and other parts，which can be used conveniently and credibly，and move flexibly and safely.ZNN-D6 6-speed viscometer can measure mostly the viscosity and rheological characteristics of Newton and Non-Newton fluids，and measure technical parameters such as shear force，rheological index，consistency coefficient. Its features include

convenient operation and reliable measurement.GJ-3S High-speed mixer is a specific experiment equipment used in petroleum exploration

and drilling. Its main motor can drive the strap and the mix axis，which mix all kinds of drilling fluids used in petroleum drilling.

The motor can be controlled by an electrical speed regulator，which belongs to a stepless speed regulation. The fact rotate speed can be

shown digitally on the panel of the speed regulator whose working range is 4000～11000r/min，and whose mix vanes should

be manufactured on API criterion.

Specification:
